conversion wheel hub stud 14mm to 1-2 inch

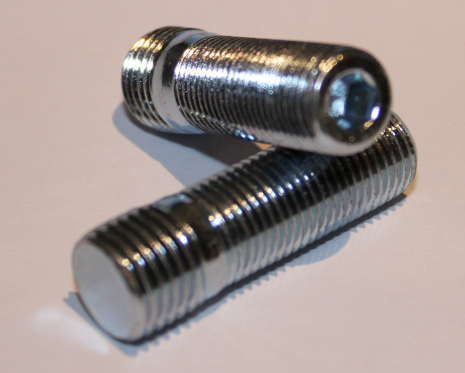

Conversion wheel hub stud 14mm1.5 to 1-2 inch unf,allan key fit, see main notes for spec and recommendations.

This stud converts a 14mm 1.5 threaded hub to take a 1/2'' unf wheel nut, useful on VW Beetles where a suitable 14mm 1.5 nut is not available, but a 1/2'' UNF is, for example sleeve nut applications.

Overall length is 1 3/4'' 44.5mm

14mm portion is 5/16ths, 9.5mm

1/2'' UNF portion is 1 1/4'', 30mm

Make sure you get a minimum 5 turns into hub, torque by hand to 20-30ft/lbs, thread lock is highly recommended on the hub side of studs.

Carbon Steel class 12.9
